Rotacaster 35mm Double (40A) TPE Roller, ABS Body 8.2mm Bore No Bushing

Rotacaster 35mm Double (40A) TPE Roller, ABS Body, 8.2mm bore, no Bushing

$ 8.65 AUD (Ex GST $ 7.86 AUD)
SKU: R2-0354-40
Reviews: Be the first to review

The Rotacaster 35mm omni wheel has been engineered for both floor and inverted applications such as manual and powered conveyor transfer systems, feed tables, feed rails, pipe rollers, workstation turntables, furniture castors and robot wheels. The Rotacaster 35mm omni wheel provides the perfect alternative to swivel castors, conveyor wheels and rollers and ball transfer units and is the smoothest and lightest wheel available on the market.

Body Material: ABS (Acrylonitrile-Butadiene-Styrene)
Roller Material: TPE (Thermoplastic elastomers) 40A

Lateral Capacity: 2.5kgs
Static Load Capacity: 50kgs
Wheel Diameter: 35mm
Roller Diameter: 9.5mm
Hub Width: 8.2mm

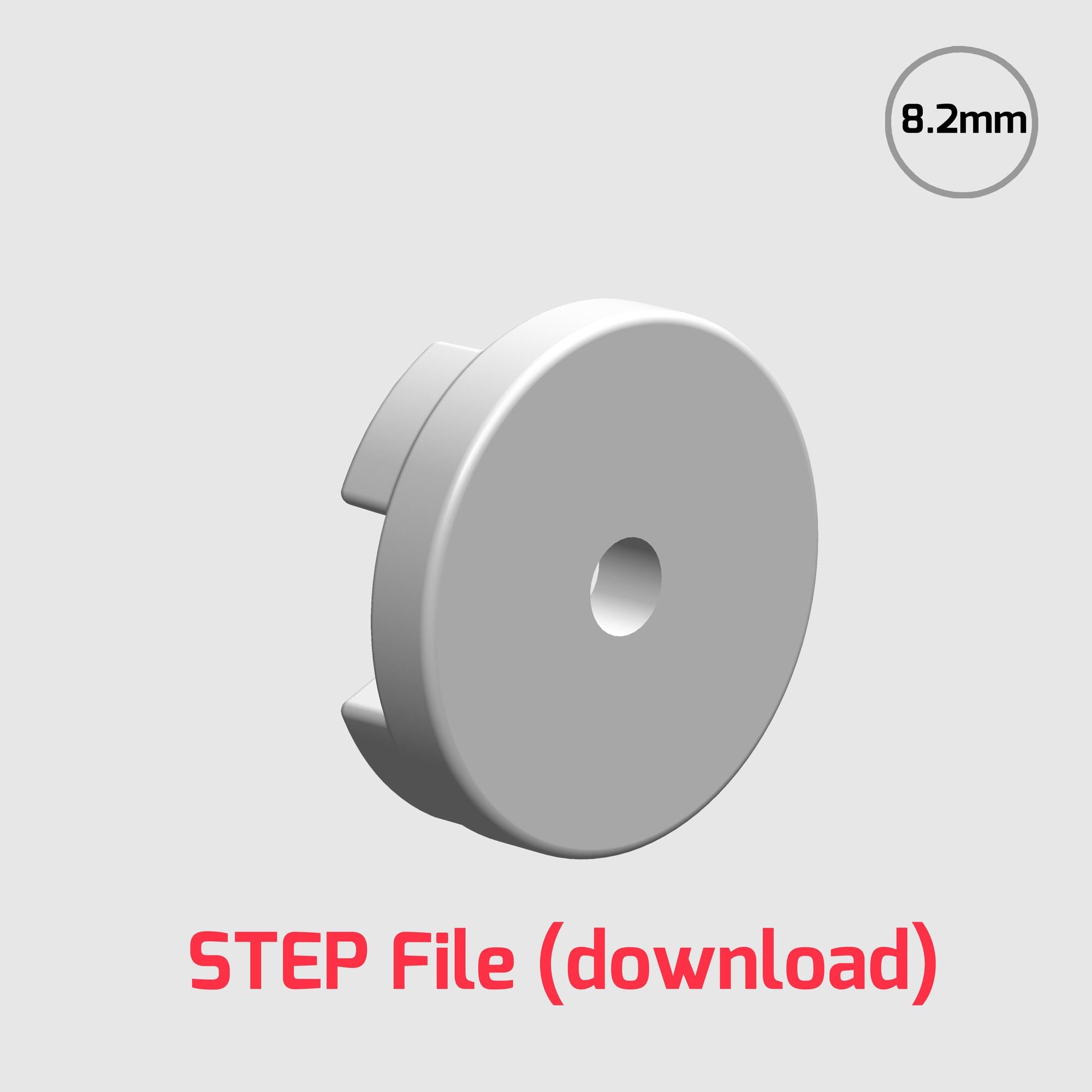

Print your own hub:

If you need an adaptor for an alternative drive shaft, download the step files to adjust and 3D print your own hub adaptor.
Please note that 3D printable files for 35mm Rotacaster Wheels are available for 8.2mm bore without bushing only!
