FAQ

  1. What sizes are Rotacaster multidirectional wheels available in?
  2. Are Rotacaster multidirectional wheels available in a different colour?
  3. What are Rotacaster multidirectional wheels made from?
  4. How strong/hard wearing are Rotacaster multidirectional wheels being plastic?
  5. What configurations do Rotacaster multidirectional wheels come in?
  6. Do I need a swivel base?
  7. What are the rollers on the Rotacaster multidirectional wheel made from?
  8. Can I use a single Rotacaster multidirectional wheel as a floor wheel?
  9. Will Rotacaster wheels move sideways when unattended?
  10. How do Rotacaster multidirectional wheels handle travelling across an incline?
  11. Can I use more than four Rotacaster wheels on a load platform, hand trolley or hand cart?
  12. Are Rotacaster dollies available in different sizes?
  13. Where are Rotacaster multidirectional wheels made?
  14. Is the Rotacaster multidirectional wheel available with a break mechanism?
  15. Can Rotacaster multidirectional wheels be driven in a conveyor transfer application?
  16. How do I order from Rotacaster's range of material handling equipment and omniwheels?
  17. Do your prices include freight?
  18. Do your prices include GST?
  19. I live outside Australia, do you ship internationally?
  20. Can my company become a Rotacaster reseller?
  21. Are Rotacaster multidirectional wheels suitable for use in a freezer environment?
  22. Can I use Rotacaster multidirectional wheels in a salt water environment?
  23. We are an original equipment manufacturer and would like to use Rotacaster multidirectional wheels on our products, is this possible?
  24. Is there a warranty on Rotacaster's range of material handling equipment and omni wheels?



1.   What sizes are Rotacaster multidirectional wheels available in?

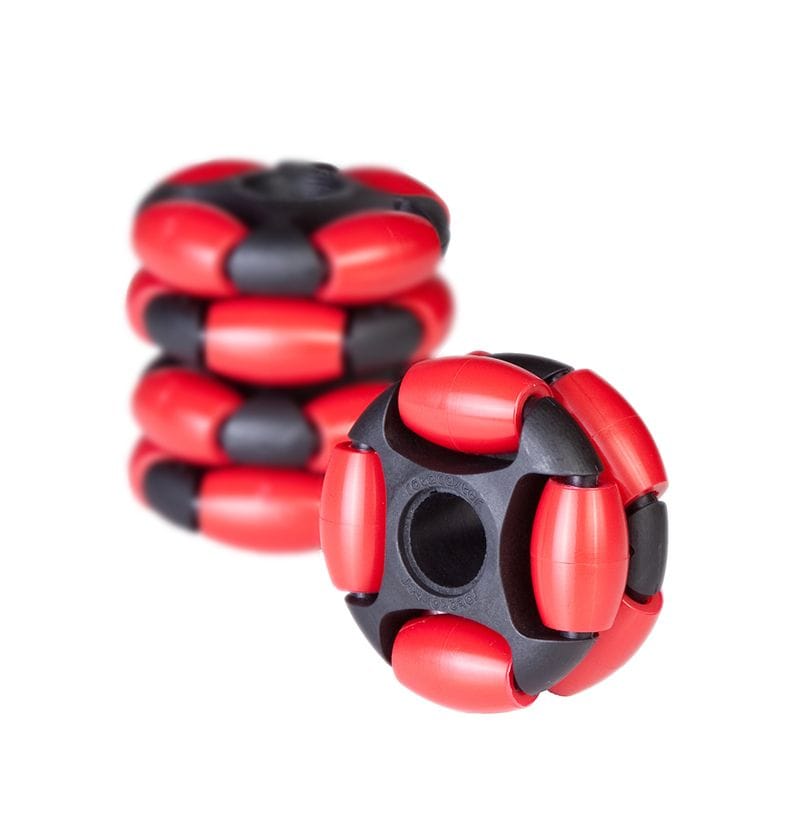

At this point in time rotacaster manufactures both a 125mm (5") diameter wheel and 48mm (1.9") diameter wheel which was released in November 2009. Our current product development map includes six (6) omnidirectional wheel sizes ranging from 48mm (1.9") to 300mm (12") in diameter. We can expedite development of specific wheel sizes dependent on specific customer requirements and demand. If you have specific requirements, please contact us to discuss your needs or subscribe to our newsletter so we can keep you updated on developments.

2.   Are Rotacaster multidirectional wheels available in a different colour?

Yes. Subject to custom orders (P.O.A). Rotacaster 125mm (5") wheels come in the standard grey colour you see on the website whilst our 48mm omni wheels come in the standard red rollers, black body that is displayed. However if you would like a 'corporate' colour or standard black we can accommodate your requests. Please contact us for details (minimal order quantities do apply).

3.   What are Rotacaster multidirectional wheels made from?

The current 125mm Rotacaster omni wheels are manufactured from engineering grade polymers. The body is made from carilon, the bushes from nylon and the rollers from elastomers (polyurethane). Our new 48mm multidirectional wheel is manufactured using glass filled nylon for the body and axles and Delrin bushed polyurethane (TPU) rollers. Should you require custom roller materials, e.g. rubber, we can usually accommodate these requests depending on order quantities (P.O.A).

4.   How strong/hard wearing are Rotacaster multidirectional wheels being plastic?

This is a very common concern, however Rotacaster omni wheels are an extremely robust and hard wearing product. Manufactured from injection moulded engineering grade polymers, the wheel body incorporates both the hub and transverse roller axles. This monolithic web-like structure provides a robust and resilient frame which can handle substantial dynamic (impact) and static (carrying) loads without failure. The subsequent over moulding encapsulates the bush and axles (with a durable roller material such as polyurethane). The omnidirectional wheels are then sonically welded together to form double or triple rotacaster wheels. The wheels are then ultimately mounted within a fixing leaving little chance for anything to break or malfunction.

The result is a wheel that offers:

  • superior strength, wear and friction characteristics
  • outstanding chemical resistance and low permeability
  • high resistance to fatigue, creep, swelling and repetitive deformation
  • excellent balance of stiffness and toughness over a wide temperature range
  • resistance to a variety of fuels, organic solvents and aggressive aqueous media

We encourage you to read the case study on the performance of the Rotacaster wheel in an abrasive and corrosive environment over a 2 1/2 year period in which the prior nylon swivel castors had been replaced every 6 months.

5.   What configurations do Rotacaster multidirectional wheels come in?

Rotacaster multidirectional wheels are manufactured in a single, double or triple row configurations for the 125mm wheel whereas, at present, only a double configuration exists for the 48mm wheel. Single wheels are only for use when combined in multiples to either create a roller or a conveyor transfer table

6.   Do I need a swivel base?

No. The rollers take the place of a swivel mount, providing omnidirectional movement whilst using a fixed mounting. This also provides other benefits in regard to mounting options, load stability, improved tracking capability, minimal housing enclosures and simple mounting using the axle bolt.

7.   What are the rollers on the Rotacaster multidirectional wheel made from?

The rollers on the Rotacaster multidirectional wheel are made from polyurethane as a standard, however custom requirments are available for particular enviromnments depending on volume orders.

8.   Can I use a single Rotacaster multidirectional wheel as a floor wheel?

Yes, but only when combined in multiples to ensure that the combination provides a complete circular circumference so the contact surface of a roller maintains the concentric or circular bearing surface. The single wheel is predominantly for use as a driven wheel combined with others in conveyor transfers.

9.   Will Rotacaster multidirectional wheels move sideways when unattended?

No, not on an even flat surface.  Because the Rotacaster omni wheel uses a 20mm (3/4") roller for sideways movement and has a fixed orientation, it requires a greater applied force in the roller direction than in it's primary orientation (using it's 125mm (5") diameter). This is the case whether the force is manually or mechanically applied or by gravity such as on inclines. Therefore it will travel in it's primary direction at a greater rate than it will in it's secondary roller orientation. Dependent on the level of incline, load and speed, the rotacaster wheels will generally track directly across traffiicable inclines with minimal crabbing and in many cases allow loads to be parked on an incline with no (or minimal) applied braking (see video). For this reason it provides a much more controllable handling solution when negotiating inclines than swivel castors.

10.  How do Rotacaster multidirectional wheels handle travelling across an incline?

Please refer to question #9.

11.  Can I use more than four Rotacaster multidirectional wheels on a load platform, hand trolley or hand cart?

Yes, you are no longer restricted to the traditional 4 corner point fixing. The great thing with the Rotacaster multidirectional wheel is that each wheel acts individually and allows as many wheels as required to share the load without the need to overcome the mechanical coupling bond created when swivel castors are not aligned with one another or need to be reversed, (within reason a person can not physically push 5 ton). You can add several Rotacaster omniwheels to provide the level of manouverability you require without the need for larger wheels and you can even mount Rotacaster wheels at 90 degrees to one another (click to see photo).

12.  Are Rotacaster dollies available in different sizes?

Yes. Due to customer demand and feedback, we have recently extended our rota dollie range to include a small dollie, a dollie and three sizes of platform trolley. We also offer some standard accessories that can be used to customise your dolly.  Please visit the Dollies and Multi-Skates page or contact us for more information.

13.  Where are Rotacaster multidirectional wheels made?

The 125mm (5") Rotacaster omni wheel is currently manufactured in Tighes Hill - Newcastle, New South Wales, Australia whilst our new 48mm (1.9") omni wheel is manufactured in the United States. We will be looking to transport the tooling for the 48mm wheel to Australia once some minor adjustments have been made.

14.  Is the Rotacaster multidirectional wheel available with a brake mechanism?

No, Not at this point in time, however it is high on our product development agenda. We do recommend the use of readily available floor lock. There are generally 2 types, a friction lock or a lifting type lock. Please contact our sales team if you are unsure and they will help you choose the product that is right for you.

15.  Can Rotacaster multidirectional wheels be driven in a conveyor transfer application?

Yes. The Rotacaster 48mm (1.9") wheel or the 125mm (5") single wheel can be fitted to a keyed shaft which can then be driven in conveyor transfers

16.  How do I order from rotacaster's range of material handling equipment and Rotacaster omni wheels?

A complete list of Australian and U.S. resellers can be found under the ' Stockists' menu tab. You can also access our online store using the 'Online Store' menu option. You may also contact us directly for your closest reseller. No matter where you choose to purchase Rotacaster products we are more than happy to answer any queries you have.

17.  Do your prices include freight?

No.  When you proceed to the online checkout, freight will be added to you order. If you are purchasing multiple hand trollies, please contact us for savings on freight. Alternatively, if you wish to use your own freight company, please contact us

18.  Do your prices include GST?

No.  GST will be added to Australian sales during checkout as the total is compiled including freight.

19.  I live outside Australia, do you ship internationally?

Yes.  If your country does not appear in our freight matrix when purchasing from the online store, you can submit your order and we will contact you to organise shipment.

20.  Can my company become a Rotacaster reseller?

Please contact us directly to discuss this opportunity further.

21.  Are Rotacaster multidirectional wheels suitable for use in a freezer environment?

Yes.  By replacing the steel bearing with a nylon bearing to prevent it from seizing in the freezer, Rotacaster omni wheels will out perform swivel castors in this challenging environment.  Read a testimonial from Exquisine, a company who uses rotacaster wheels in freezers at -27 degrees celsuis.

22.  Can I use Rotacaster multidirectional wheels in a salt water environment?

Yes.  The Rotacaster multidirectional wheel is available with a nylon bearing and stainless steel spanner tube if required. Read a case study on the use of our wheels in a salt water environment.

23.  We are an original equipment manufacturer and would like to use Rotacaster multidirectional wheels on our products, is this possible?

Yes.  We love seeing the different applications OEMs find for the Rotacaster multidirectional wheel.  Please contact us to discuss further. You may also view current OEM products with Rotacaster omni wheels in our products section.

24.  Is there a warranty on Rotacaster's range of material handling equipment and omni wheels?

Yes. Rotacaster Wheel Limited provides a 12 month warranty on all of our products when they are used in accordance with suggested use and safe operating requirements.
