50mm Omnia Wheel with 8mm steel bearing (select preferred roller hardness)

The 50mm R2 Rotacaster omni wheel is available with a choice of four roller hardnesses, four acetal bearings, five drive inserts, a roteting hex bearing or, uniquely for this size omni wheel, a steel roller bearing.

The plain bore wheel features a 16x5mm bearing seat with a 14mm hex inner bore.

The 50mm Rotacaster is suitable as a floor wheel and for inverted conveyor transfer applications, for both driven and idle (rotational) applications.

Pound for pound, it has the highest load capacity to weight ratio in its class. It is a light, but extremely robust and capable wheel.

NOTE: Selecting different wheel configurations may affect pricing.

$ 15.37 AUD (Ex GST $ 13.97 AUD)

Options:

Roller Hardness (Shore A) *

Qty * Add to Cart

SKU:	R2-0504-__/S08
Reviews:	Be the first to review

Description

The Rotacaster 50mm omni wheel has been engineered for both floor and inverted conveyor transfers in manual and powered applications, feed tables, feed rails, pipe rollers, workstation turntables, furniture castors, robot wheels and much much more. The Rotacaster 50mm omni wheel provides the perfect alternative to swivel casters, conveyor wheels, rollers and ball transfer units.

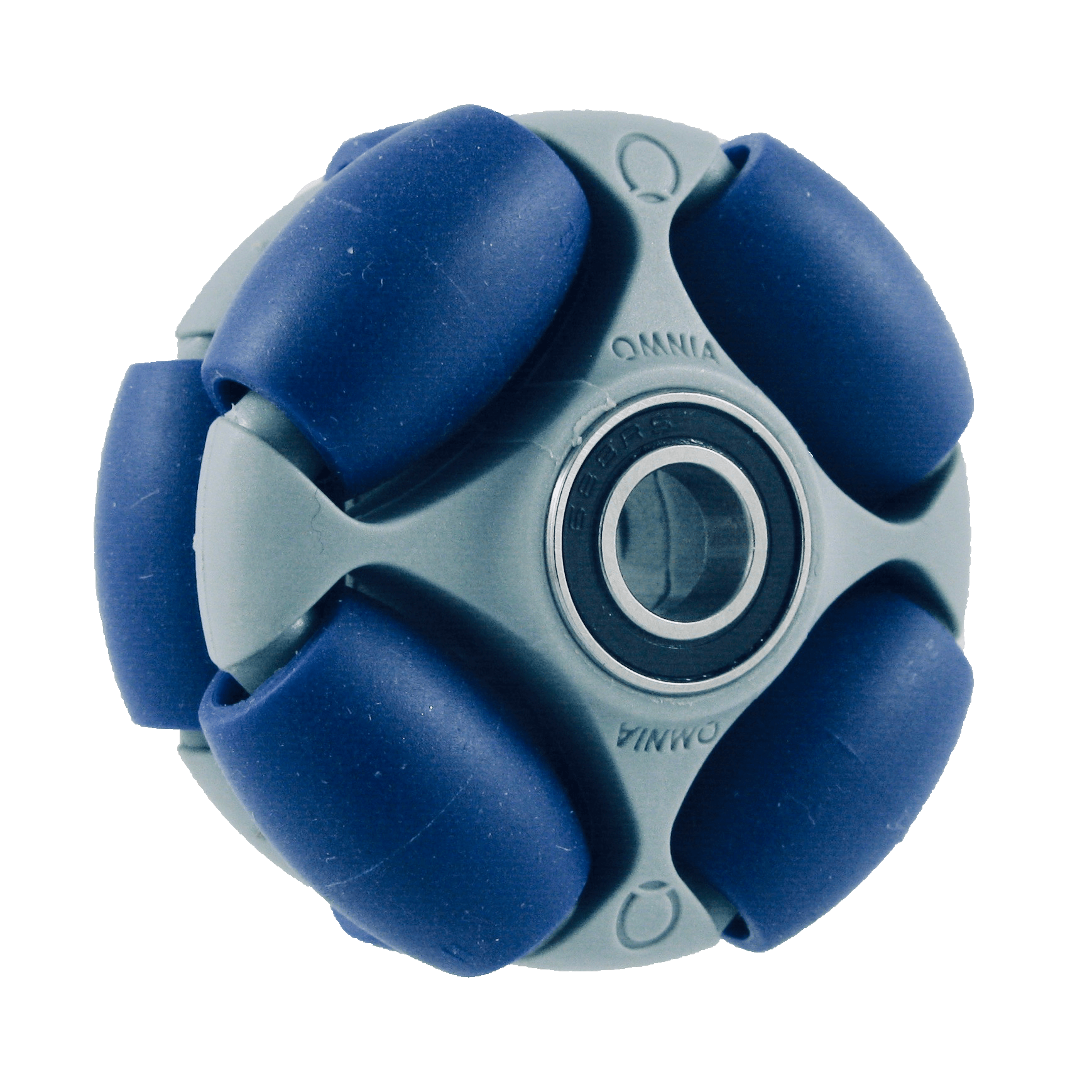

The 35A durometer (blue) rollers provide great traction and durability, which makes it a good performer for lightweight robotic and driven conveyor transfer applications.

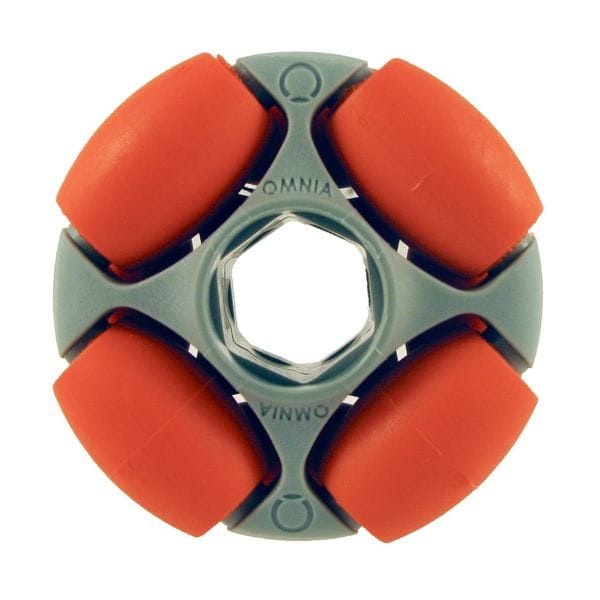

The 60A durometer (orange) rollers deliver great traction and durability in conveyor transfer applications of all kinds where traction and reliability are critical

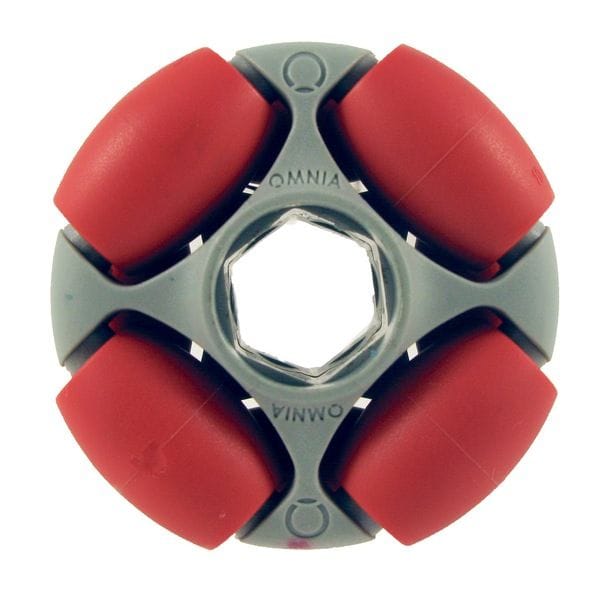

The 95A durometer (red) rollers are suited for heavier loads, and ideal for floor wheel use, as the polyurethane rollers are highly durable. Likewise, for idler conveyor transfers, the durability of the roller is a good fit.

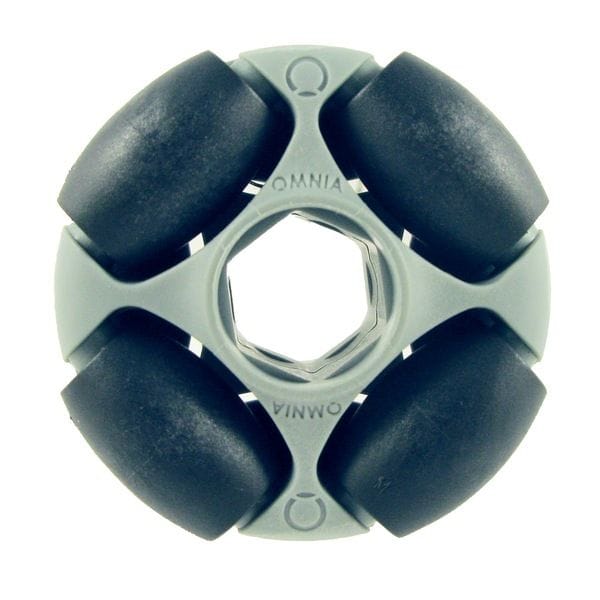

The solid wheels (dark grey), are suitable for manual conveyor transfers yet not ideal for floor hard floor applications.

More information about Rotacaster rollers and durometer click here.

Durometer: 35A
Material: TPE
Load Capacity: 5kg

Diameter: 50mm
Hub width: 27.5mm
Roller Dia: 13mm
Bore Dia: 14mm hex
Seat: 16x5mm
Wheel Weight: 34g

Durometer: 60A
Material: PU
Load Capacity: 15kg

Diameter: 50mm
Hub width: 27.5mm
Roller Diar: 13mm
Bore Dia: 14mm hex
Seat: 16x5mm
Wheel Weight: 38g

Durometer: 95A
Material: PU
Load Capacity: 25kg

Diameter: 50mm
Hub width: 27.5mm
Roller Dia: 13mm
Bore Dia: 14mm hex
Seat: 16x5mm
Wheel Weight: 38g

Durometer: Solid
Material: TCP
Load Capacity: 30kg

Diameter: 50mm
Hub width: 27.5mm
Roller Dia: 13mm
Bore Dia: 14mm hex
Seat: 16x5mm
Weight: 43g

Download the 50mm Rotacaster catalogue soon.
